Specification
Frame 1-4 have integral cooling fan assemblies where required.
Optional ducting kit for cubicle roof external ventilation available for
frame 4. Frame Size H has fan cooling assembly that can be cubicle
roof mounted or drive mounted. Add 5.9” (150mm) to overall height
for drive mounted option.

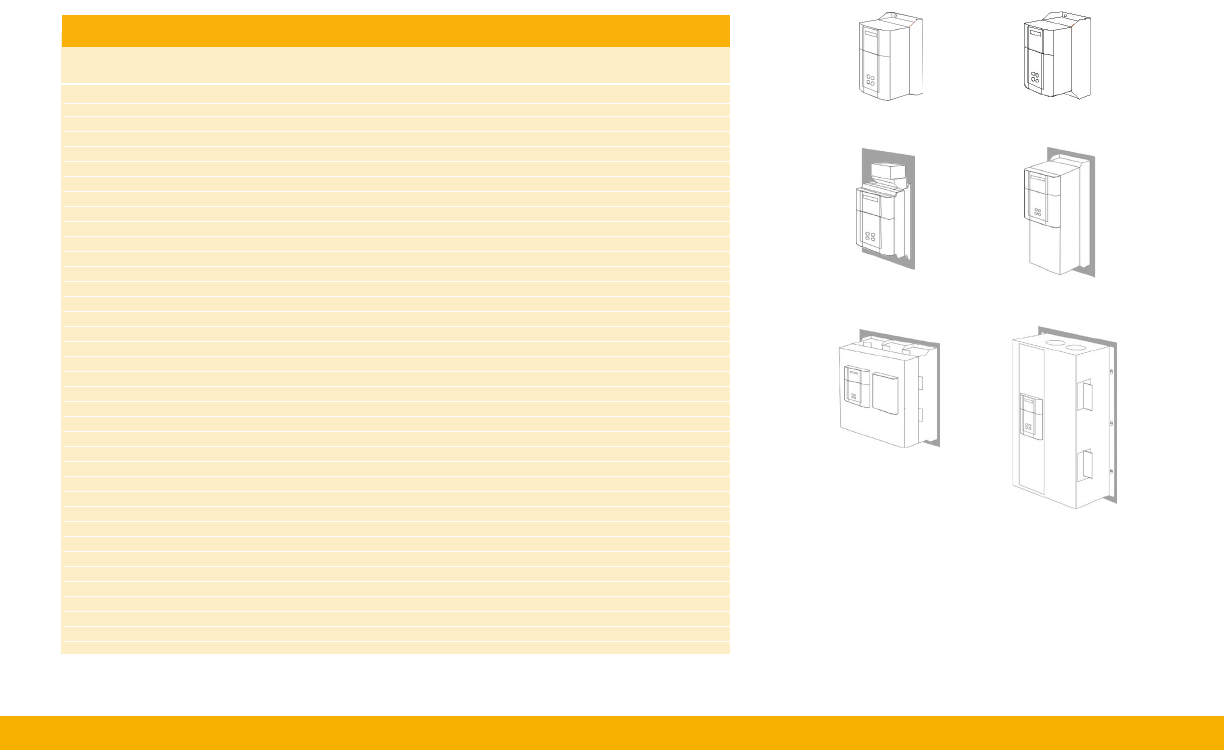

FRAME 3
FRAME 4
D
W
H
D
W
H
FRAME H
D
W
H
Ratings Power Configuration
DC590+ Four Quadrant Regenerative;
2 Fully Controlled Three Phase Thyristor Bridges
DC591+ Two Quadrant Non-Regenerative;
1 Fully Controlled Three Phase Thyristor Bridge
Thyristor Controlled Variable Field Supply
Field Current (Amps DC)
4A Frame 1
10A Frame 2 and 3
30A Frame 4
60A Frame 6 and H
Field Voltage (VDC)
AC Input x 0.9 maximum
Armature Current Ratings (Amps DC)
See table below for ratings.
Overload 200% for 10 secs, 150% for 30 secs
Higher ratings with reduced overloads available
Please refer to manual
Armature Voltage (VDC)
AC Input x 1.2 maximum
AC Supply Voltage (VAC)
110 - 220V (±10%) All Sizes
220 - 500V (±10%) All Sizes
500 - 600V (±10%) Frame 4, 6, and H
600 - 690V (±10%) Frame 6 and H
50/60Hz Three Phase
Environment
Ambient Operating Temperature
0°-45°C (32°-113°F) Frame 1 and 2
0°-40°C (32°-104°F) Frame 3, 4, 6 and H
Derate 1% per °C above ambient to 55°C (131°F) max
Operating Altitude
Up to 1640 ft (500m) above sea level
Derate 1% per 656 ft (200m) above 1640 ft (500m) to maximum
of 16,400 ft (5000m)
Protection
High Energy MOV’s
Heatsink Overtemperature
Instantaneous Overcurrent
Thyristor Trigger Failure
Inverse Time Overcurrent
Interline Snubber Network
Field Failure
Zero Speed Detection
Speed Feedback Failure
Standstill Logic
Motor Overtemperature
Inputs/Outputs
Analog Inputs (5 Total - 12 bit plus sign)
1 – Speed Demand Setpoint (-10/0/+10V)
4 – Configurable
Analog Outputs (3 Total - 11 bit plus sign)
1 – Armature Current Output (-10/0/+10V or 0 - 10V)
2 – Configurable
Digital Inputs (9 Total - 24VDC max)
1 – Program Stop
1 – Coast Stop
1 – External Trip
1 – Start/Run
5 – Configurable
Thermistor Input
1 – Isolated
Digital Outputs (3 Total - 24V(max 30V) 100mA)
Short circuit protected
3 – Configurable
Reference Supplies
1 – +10VDC
1 – -10VDC
1 – +24VDC
Optional Equipment
6911 Operator/Programming Controller
Feedback Boards
• Tach generator
• Encoder
• Optical Fiber Microtach Encoder
Communication Technology Box
• LINK
• Profibus DP
• Devicenet
• Controlnet
• Ethernet
• Canopen
• Modbus +
• EI Bisynch/Modbus/RS422/RS485
Standards
• The DC590+ series meets the following standards
when installed in accordance with the relevant
product manual:
• CE Marked to EN50178 (Safety, Low
Voltage Directive)
• CE Marked to EN61800-3 (EMC Directive)
• UL listed to safety standard UL508C through 500 HP
• cUL listed to Canadian standard C22.2 #14 through
500 HP
Dimensions - For estimation only
Product Code HP Rating Amps Frame Dimensions (in/mm)
Non-Regenerative Regenerative (230/460) (Max) H W D
955+8N0007 955+8R0007 3/7.5 15 1 14.8/375 7.9/200 8.7/220
955+8N0020 955+8R0020 10/20 35 1 14.8/375 7.9/200 8.7/220
955+8N0030 955+8R0030 15/30 55 2 21.5/546 7.9/200 11.5/292
955+8N0040 955+8R0040 20/40 70 2 21.5/546 7.9/200 11.5/292
955+8N0050 955+8R0050 25/50 90 2 21.5/546 7.9/200 11.5/292
955+8N0060 955+8R0060 30/60 110 2 21.5/546 7.9/200 11.5/292
955+8N0075 955+8R0075 40/75 125 2 21.5/546 7.9/200 11.5/292
955+8N0100 955+8R0100 50/100 165 2 21.5/546 7.9/200 11.5/292
955+8N0125-A3 955+8R0125 60/125 206 3 28.9/735 17.0/432 8.4/213
955+8N0125 955+8R0125 60/125 206 3 27.0/686 17.0/432 8.4/213
955+8N0150-A3 955+8R0150 75/150 246 3 28.9 735 17.0/432 8.4/213
955+8N0150 955+8R0150 75/150 246 3 27.0 686 17.0/432 8.4/213
955+8N0200-A4 955+8R0200 100/200 360 4 54.0/1372 18.0/457 14.9/378
955+8N0200-D4 955+8R0200 100/200 360 4 39.0/991 21.0/533 15.1/384
955+8N0250-A4 955+8R0250 125/250 425 4 54.0/1372 18.0/457 14.9/378
955+8N0250-D4 955+8R0250 125/250 425 4 39.0/991 21.0/533 15.1/384
955+8N0300-A4 955+8R0300 150/300 490 4 54.0/1372 18.0/457 14.9/378
955+8N0300-D4 955+8R0300 150/300 490 4 39.0/991 21.0/533 15.1/384
955+8N0400-A4 955+8R0400 200/400 700 4 54.0/1372 18.0/457 14.9/378
955+8N0400-D4 955+8R0400 200/400 700 4 39.0/991 21.0/533 15.1/384
955+8N0500-A4 955+8R0500 250/500 815 4 54.0/1372 18.0/457 14.9/378
955+8N0500-D4 955+8R0500 250/500 815 4 39.0/991 21.0/533 15.1/384
955+8N0700-D6 955+8R0700-D6 700 1200 6 38.0/966 56.0/1422 17.5/444
955+8N1000-D6 955+8R1000-D6 1000 1600 6 38.0/966 56.0/1422 17.5/444
955+8N1200-D6 955+8R1200-D6 1200 1950 6 38.0/966 56.0/1422 17.5/444
955+8N1000 955+8R1000 1000 1600 H 68.0/1727 60.0/1524 17.2/436
955+8N1250 955+8R1250 1250 2000 H 68.0/1727 60.0/1524 17.2/436
955+8N1500 955+8R1500 1500 2400 H 68.0/1727 60.0/1524 17.2/436
591+0243/500 590+0243/500 75/150 243 3 19.1/485 11.8/300 9.2/234
591+0380/500 590+0380/500 100/200 380 4 27.6/700 10.0/253 14.1/358
591+0500/500 590+0500/500 150/300 500 4 27.6/700 10.0/253 14.1/358
591+0725/500 590+0725/500 200/400 725 4 27.6/700 10.0/253 14.1/358
591+0830/500 590+0830/500 250/500 830 4 27.6/700 10.0/253 14.1/358
591+1250/500 590+1250/500 750 1250 6 28.1/715 27.0/686 17.3/440
591+1600/500 590+1600/500 1000 1600 6 28.1/715 27.0/686 17.3/440
591+1950/500 590+1950/500 1200 1950 6 28.1/715 27.0/686 17.3/440
591+2000/500 590+2000/500 1250 2000 H 37.6/956 - 55.4/1406* 33.5/850 16.4/417
591+2400/500 590+2400/500 1500 2400 H 37.6/956 - 55.4/1406* 33.5/850 16.4/417
Black product code indicates DRV package. Blue product code indicates chassis (controller only * First dimension is for non-regen, second is for regen
FRAME 6
FRAME 1
FRAME 2
D
W
H
D
W
H
Valid at time of print
D
W
H
Gray panels represent footprint of
DRV units for frames 3, 4, 6, and H.
Note: Dimension table includes only the 230/460 volt ratings. Drives
for a wide range of input voltages are available. For product codes,
current ratings, and dimensional data on 110-220 volt, 575 volt, and
690 volt units, please consult factory. Drives of higher power ratings
can also be provided upon request.
